⚠️ Digital Product Only
This listing is for a digital 3D model (.STL + .3MF) – no physical item will be shipped.

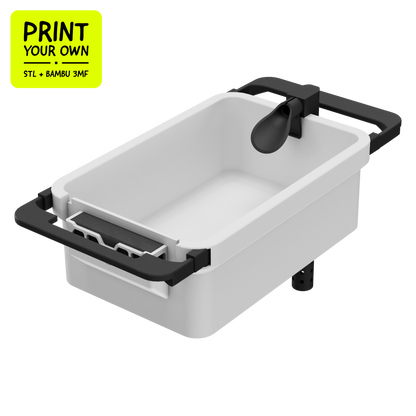

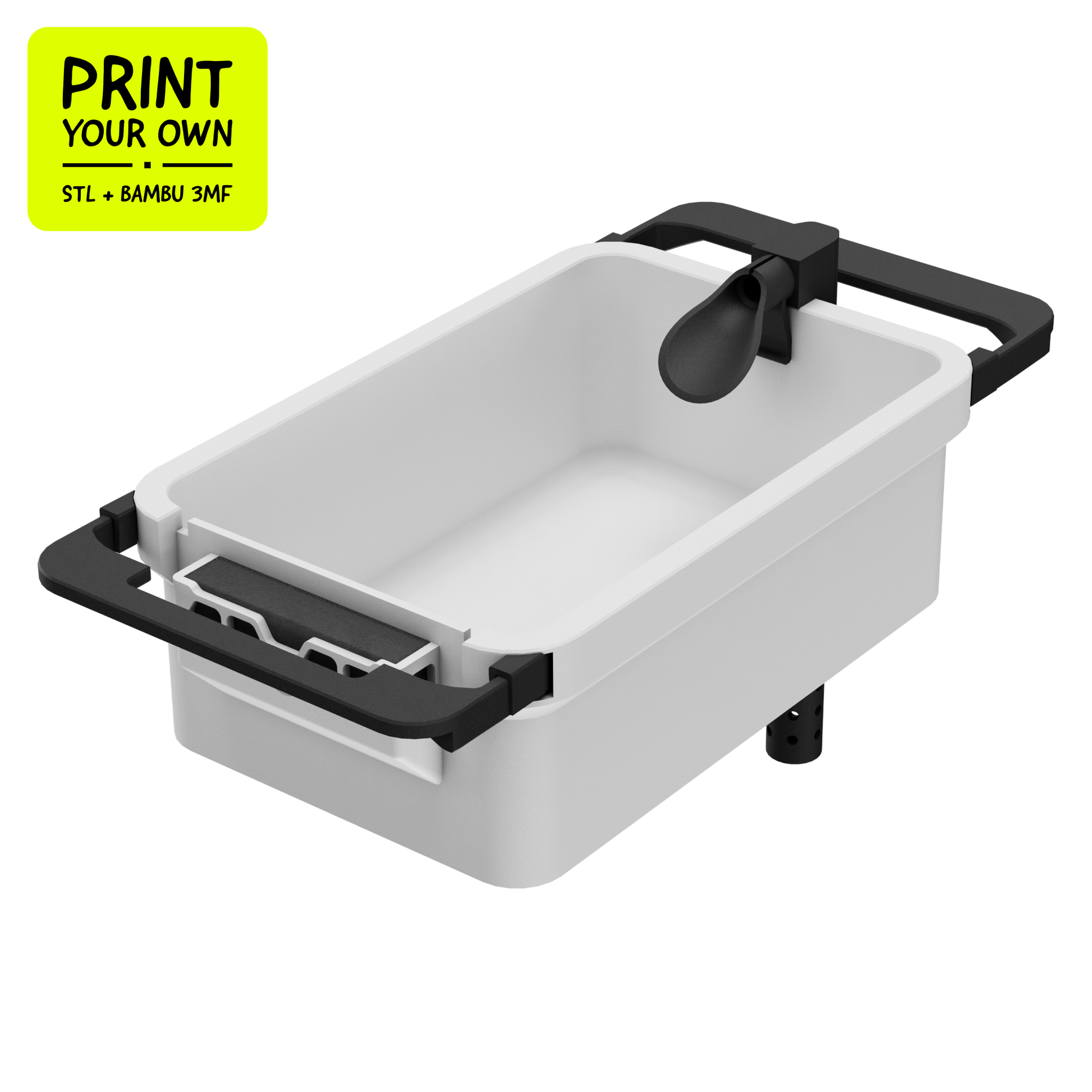

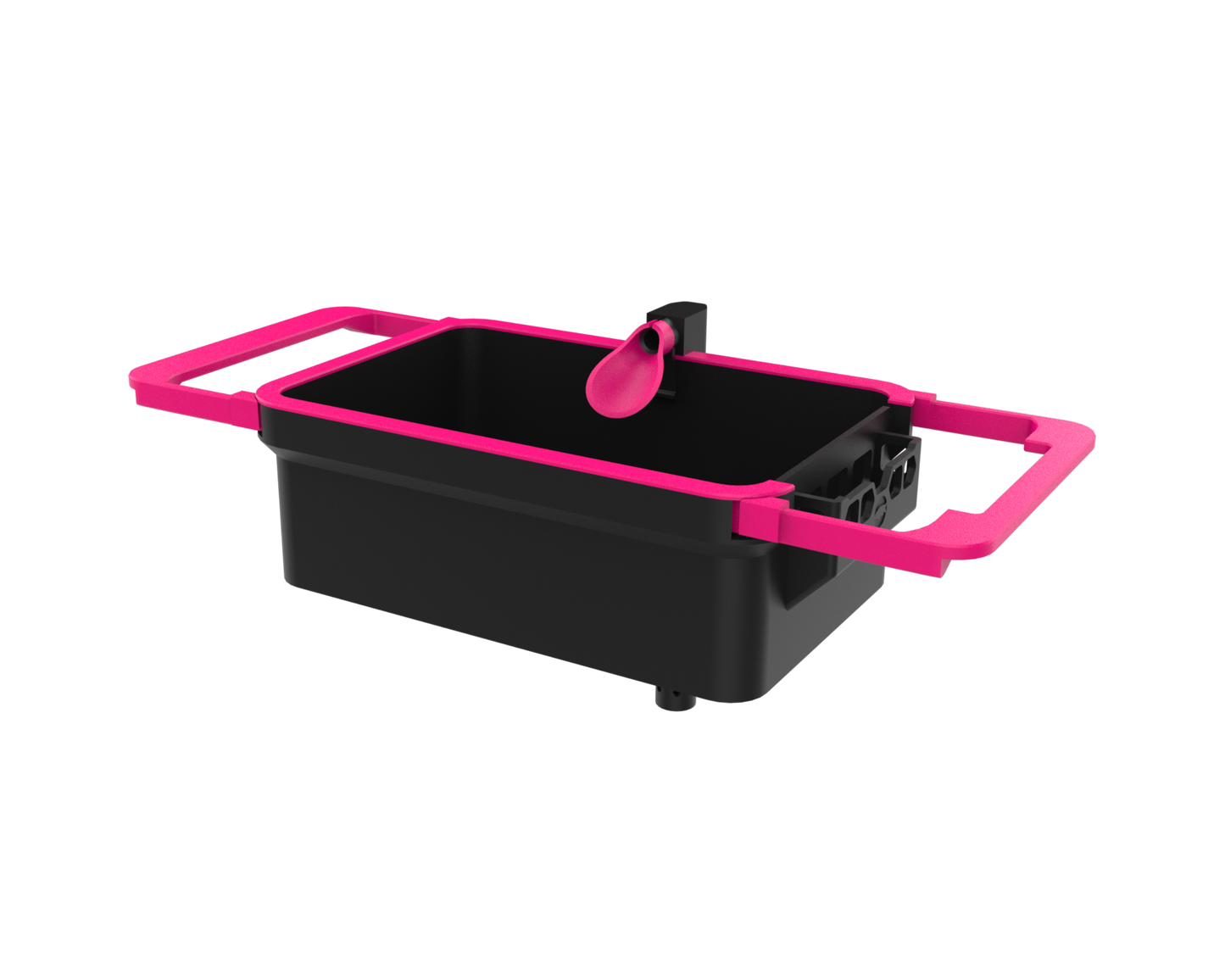

Print your own Air-Powered Fry Incubation Tray, the same proven design used in fishrooms worldwide. This updated version is engineered for efficient hatching and early grow-out for species like cichlids, CPDs, pea puffers and more. Now available as an official Scapefin digital download, optimised for PETG and ready to slice in Bambu Studio.
✨ Features
• Hang-on design with adjustable rails, sturdy construction and tension clips for a secure fit
• Air-powered flow control – simple, reliable and compatible with any standard air pump
• Modular intake – position it anywhere on the rim or pair it with automated egg catchers
• Refined outlet system with interchangeable fine and coarse sponges
• Covers available for jump-prone species and shaded rearing environments
• PETG-optimised components for strength, durability and long-term aquarium safety
💾 Included Files
• STL files and Bambu Studio–optimised 3MF files (all components)
• Assembly guidance
• Print Recommendations
• Personal-Use Licence
Print settings differ per component.
Please refer to the instructions included in your download package.

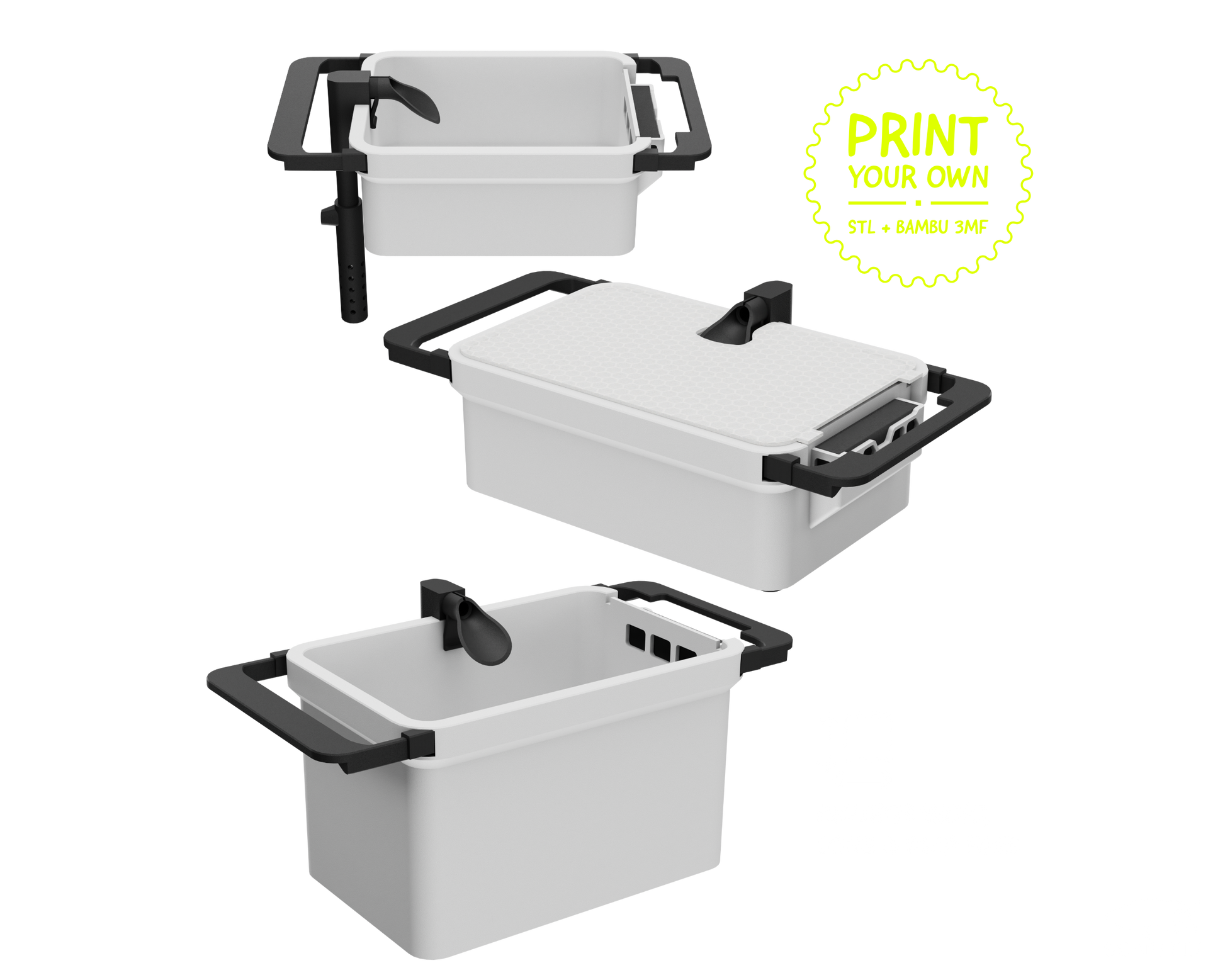

📏 Tray Dimensions
Internal footprint:
• Short: 180 × 140 × 80 mm (7.1 × 5.5 × 3.1 in), ~1.6 L usable
• Long: 220 × 140 × 80 mm (8.7 × 5.5 × 3.1 in), ~2.0 L usable
• Deep: 220 × 140 × 140 mm (8.7 × 5.5 × 5.5 in), ~3.9 L usable
Optimal water level: ~15 mm below listed tray height
External size: Internal dims +31 mm length, +20 mm width, +3 mm height
🧩 Rail Set (tank span clearance – rimmed or rimless)
• Short: 220–360 mm (8.7–14.2 in)
• Long/Deep: 260–400 mm (10.2–15.7 in)
⚙️ Components Included (Printable)
• Left & Right Rail Tension Clips
• Left & Right Rail Clips with air hose holder
• Clip-on Dispersion Tap (with lily attachment)
• Air & Water Intake Assembly
• Cover Lid (top-opening or side-opening)
• Optional Extra-Long Rail Set (400 mm+ span)

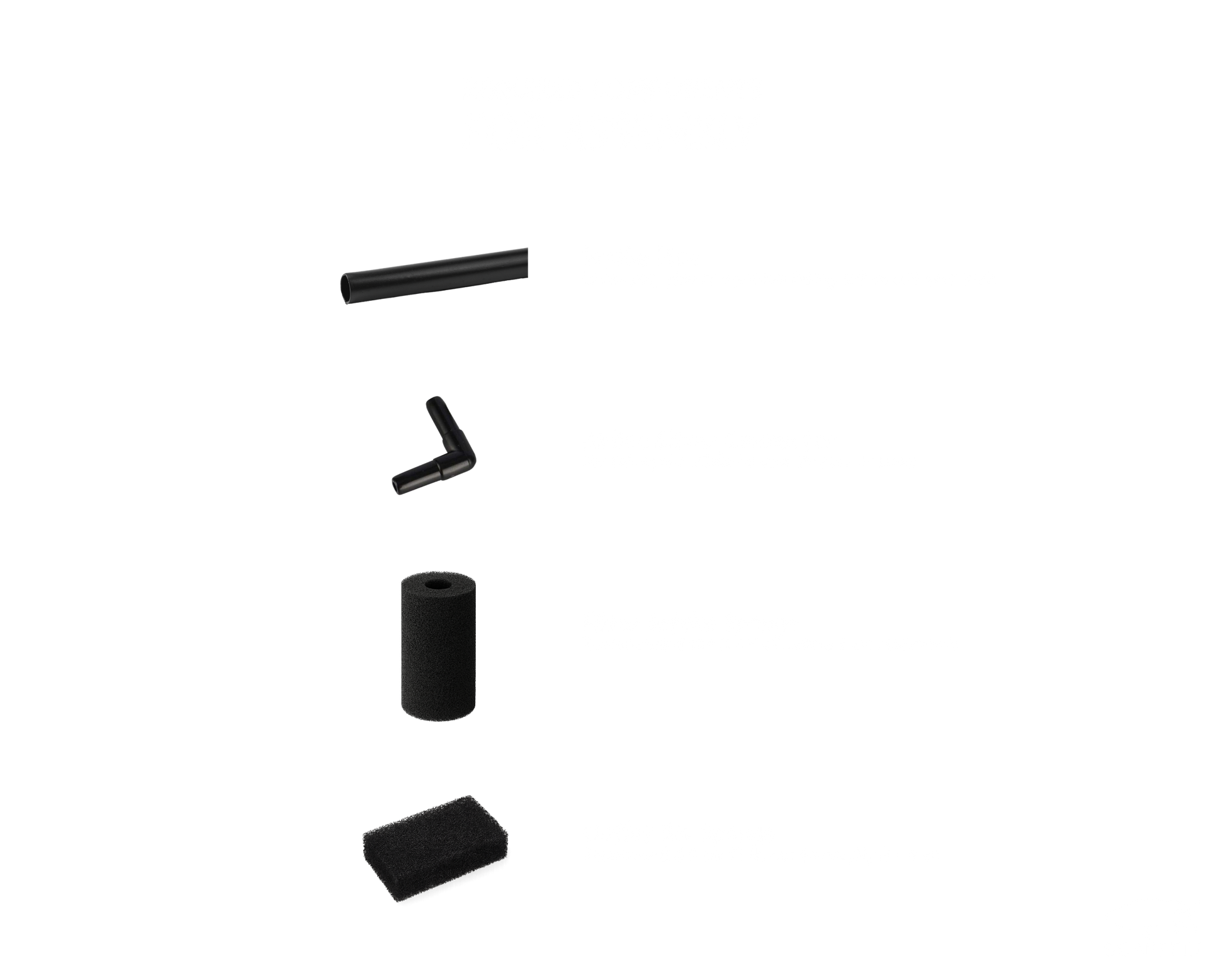

✂️ Components Required for Assembly (Not Included)
• Intake Pipe: 13 mm poly pipe or aquarium tubing, cut to suit your tank
• Airline Elbow Connector: for linking the intake to your air hose or pump
• Filter Intake Sponge: recommended size 8 × 4 cm with a 2 cm centre hole
• Fine/Coarse Outlet Sponge: recommended 2 cm thick, cut to roughly 8 × 4 cm
⚠️ Licence Terms
This digital file is for personal use only.
Do not share, resell or redistribute printed or digital copies.
All digital sales are final.
For commercial licensing, please contact us directly.
Designed by Scapefin. Printed by you.
Prefer the physical version? You can also purchase this Fry Incubation Tray as a fully printed, ready-to-use product from Scapefin:
👉 Air-Powered Fry Incubation Tray (Physical Version)
